Beauty should be shared (EN/LTF B)
BION - The tandem choice of professionals
Professional tandem pilots and recreational pilots
who want to share beautiful moments with friends are inspired by the BION.
Launch, fly, land - feel good: the BION offers all-round happiness for two with
its high level of passive safety.
Easy
to launch. Simple launch characteristics are some of the
most important aspects of a tandem wing. During the development of the BION,
this criteria was very important to us. The result is a wing which inflates
continuously and manageably over the pilot and passenger. The take off speed is
pleasantly low.
Balanced
in the air. Unlike solo wings, tandem gliders have to
cope with a very large weight-range. Whether flown at the top or bottom of the
weight-range, the glider has to remain easy to steer and must not develop high
brake pressure. The BION offers the full package of pleasant handling across the
entire weight-range as well as maintaining low break pressure.
No
surprises. Anyone flying
tandem not only has responsibility for themselves - they have to offer their
passenger a safe experience too. This was our main concern when developing the
BION. Thanks to its low aspect ratio its extreme flight behaviour is very
manageable. The BION offers a very high degree of passive safety

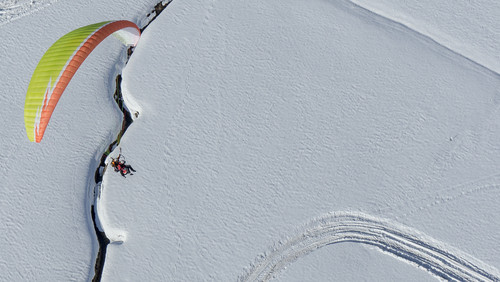

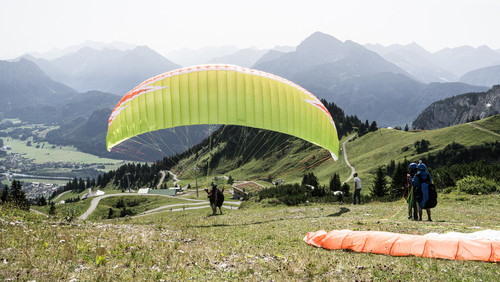

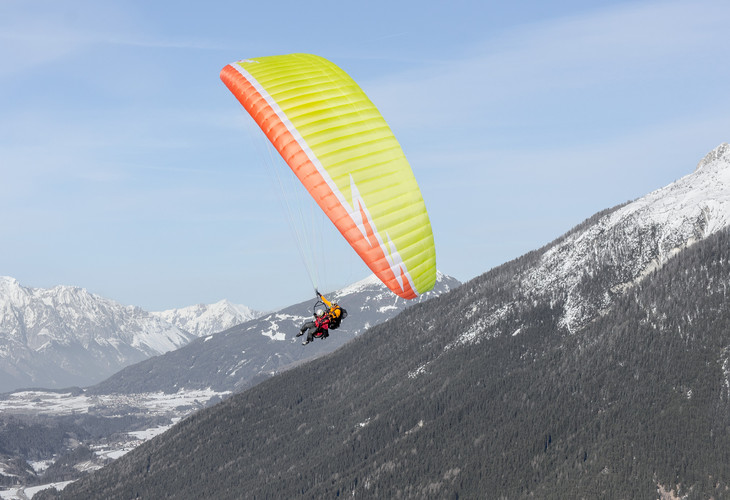

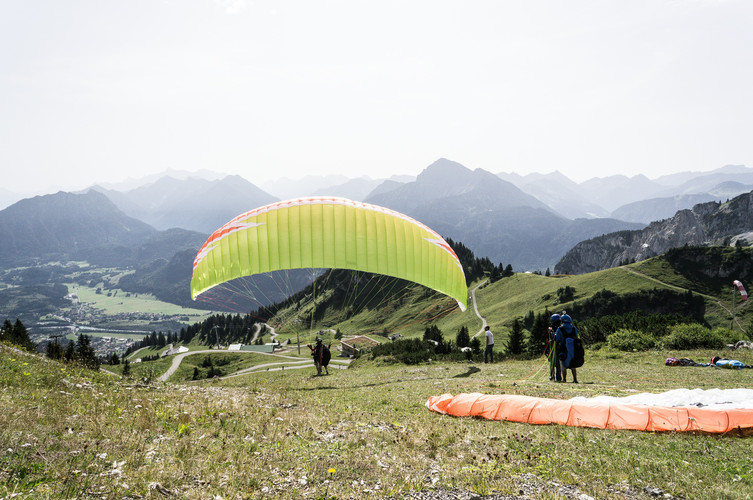

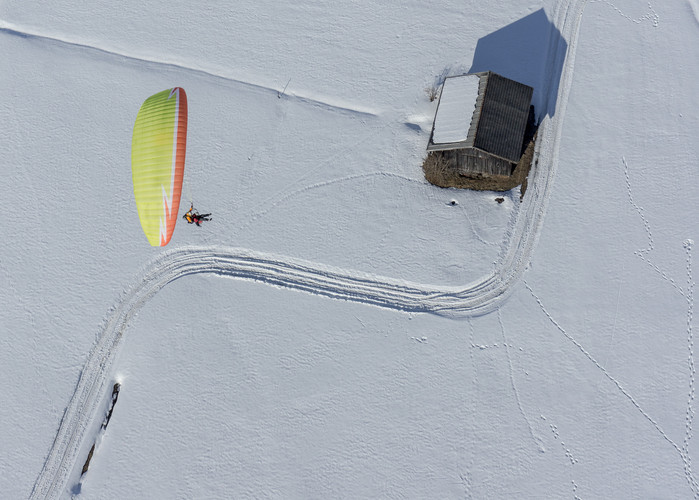

The BION experience (Please click at
the small pictures to enlarge)

Technical
data
|
|
|
33
|
37
|
|
Number
of cells
|
-
|
43
|
43
|
|
Projected
span
|
m
|
10,67
|
11,32
|
|
Projected
area
|
m²
|
32,4
|
36,44
|
|
Projected
aspect ratio
|
-
|
3,52
|
3,52
|
|
Flat
span
|
m
|
14,18
|
15,05
|
|
Flat
area
|
m²
|
39,1
|
44
|
|
Flat
aspect ratio
|
-
|
5,14
|
5,14
|
|
Line
diameter
|
mm
|
1,1
/ 2,15 / 3,15
|
|
Line
length
|
m
|
7,67
|
8,14
|
|
Total
line length
|
m
|
426
|
452
|
|
Max.
chord
|
m
|
3,47
|
3,66
|
|
Min.
chord
|
m
|
0,71
|
0,75
|
|
Weight
|
kg
|
7,5
|
8,5
|
|
Recommended
take off weight
|
kg
|
90-200
|
115-230
|
|
Certification
(EN/LTF)
|
-
|
B
|
B
|
Materials
|
|
Porcher
Sport 9092 E75A 45 g/m²
|
|
Top
surface:
|
DOKDO
30 DMF WR 41 g/m²
|
|
Bottom
surface:
|
DOKDO
30 DMF WR 41 g/m²
|
|
Profile
ribs (with line suspension point):
|
DOKDO
30 DFM RIB 41 g/m²
|
|
Profile
ribs (without line suspension point):
|
DOKDO
30 DFM WR 41 g/m²
|
|
Main
lines:
|
Edelrid
A-6843-340 (Armaid); Edelrid A-6843-240 (Armaid)
|
|
Gallery
lines:
|
Cousine
85 (Dyneema)
|
|
Brake
lines:
|
Liros
PPSL 120 (Dyneema); Edelird A-7850-360 (Dyneema)
|
|
Risers:
|
Guth
& Wolf, 25 mm
|

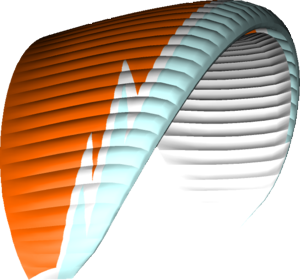

Colours

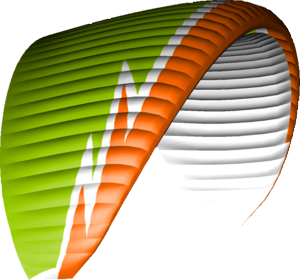

Green Fizz |
Orange Flux
|
Scope
of delivery
NOVA
Rucksack.NOVA
Rucksack.The wing and harness will determine the size of the
rucksack. We are offering our high quality and comfortable to carry models
in size S (110 litres), M (130 litres) and L (150 litres
|
Repair
kit.Everyone hopes it will never happen: a hole or tear in
the paraglider. We have included a minor damage repair kit in the right
colour for such an eventuality.
|
NOVA
windsock. So you know where the wind is coming from, we have
added a NOVA windsock. With a length of approximately 80cm it is large
enough for a take-off site |
Manual.We
have enclosed a very detailed manual which contains everything you need to
know about your paraglider. Please study it before flying your wing for
the first time. |

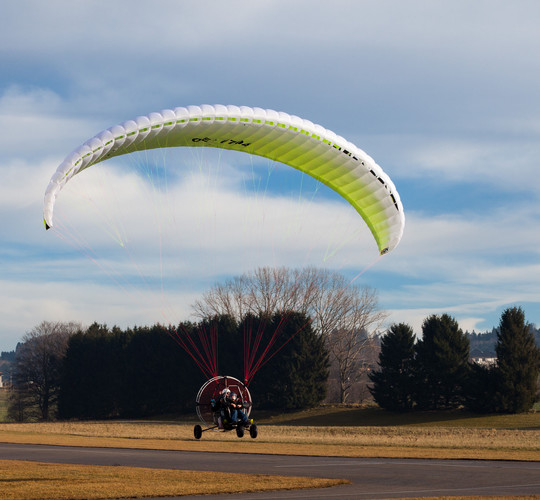

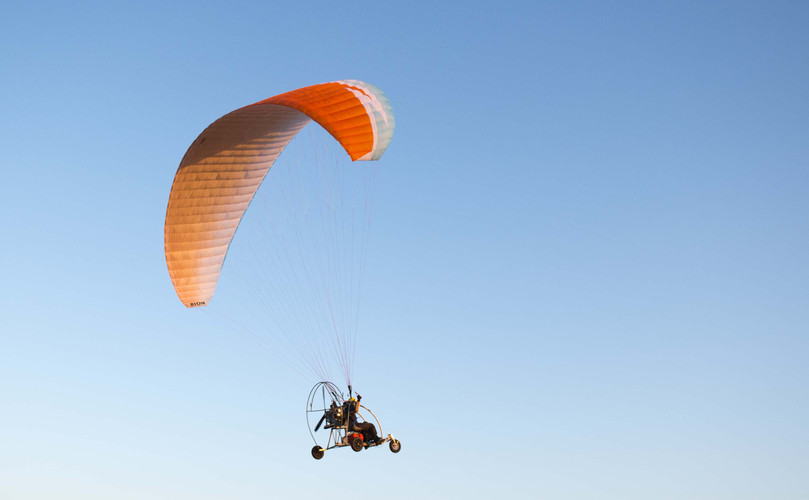

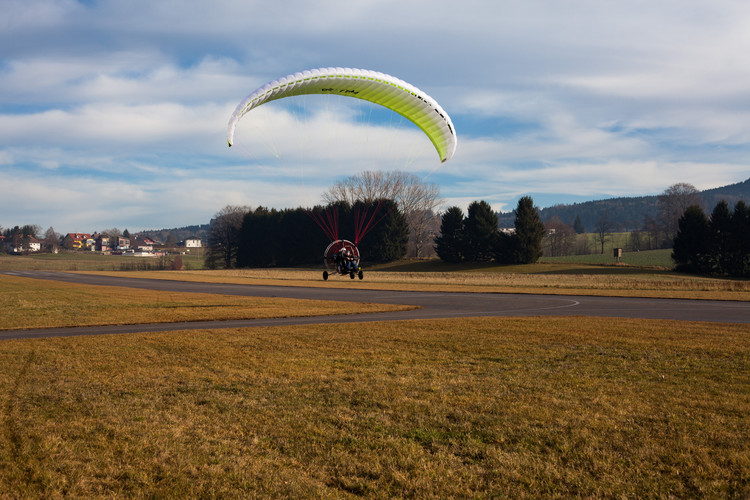

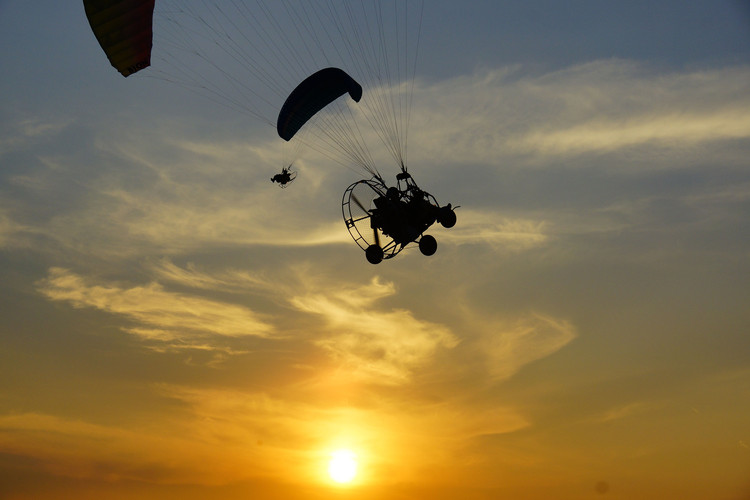

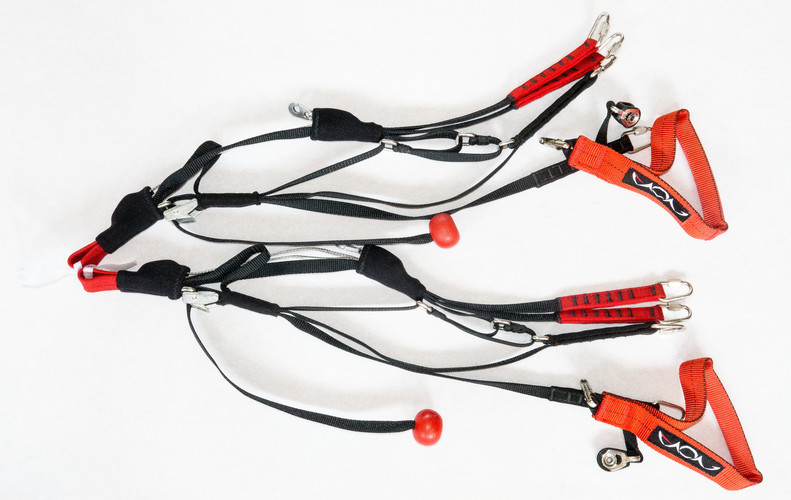

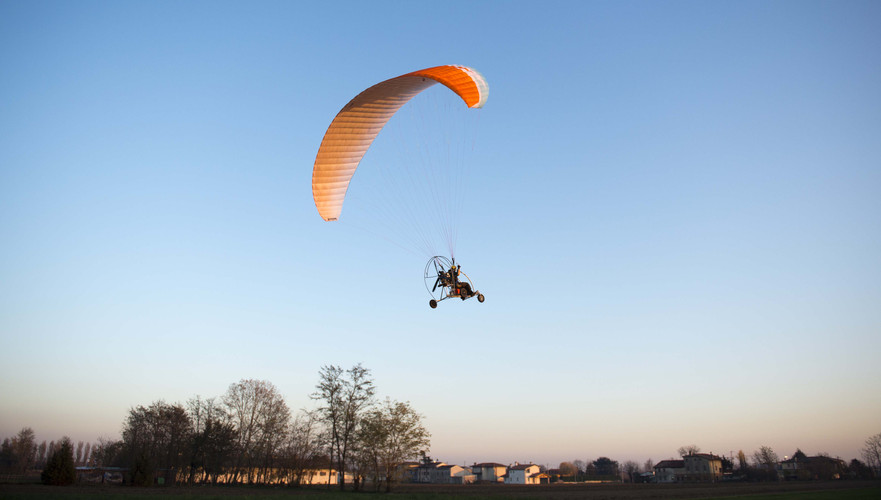

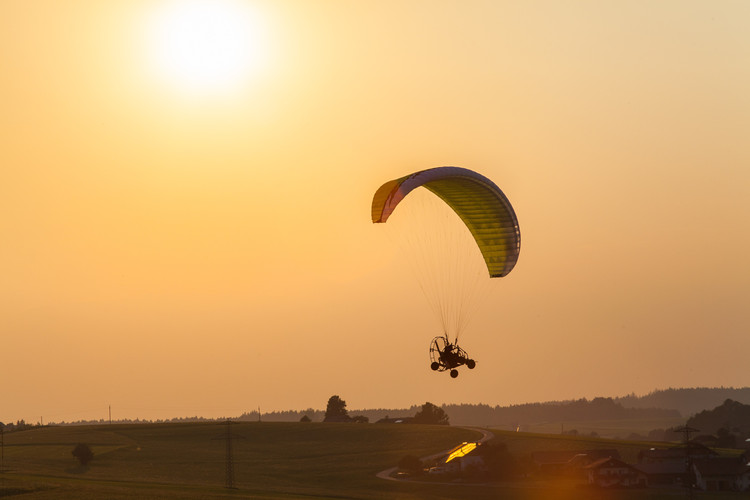

Motor (Please click at
the small pictures to enlarge)

According to the DGAC (France), the BION has been certified for powered flight.
It is suitable for both free flying and paramotoring. You can find the
certification documents in the Downloads section.
