The simplicity of flight (EN/LTF A)
SUSI
– Super simple, super safe
Launch, fly, feel good: the SUSI
(Super Simple) is a wing for those who wants absolute simplicity. Of all our
wings, the SUSI is the one with the best passive safety. This wing makes flying
easy again.
Easy flying.
The appeal of paragliding is its simplicity: take your wing out of the bag, sort the lines and you are off. The SUSI is based on this principle. With only 28 cells, it is our simplest wing and this is also mirrored in its flying characteristics: during launch the wing climbs quickly above the pilot without overshooting. Brake travel is long and the dampening is high. The Susi is simply a feel-good wing.
Simply safe.
The basic development principle of the SUSI was to make the safest wing
possible. Brake travel to the stall point is very long. During asymmetric
collapses the wing recovers quickly and without turning severely. Thanks to the
high dampening, the SUSI always conveys a feeling of safety in turbulent
conditions.
Simply versatile.
A high degree of passive safety and good performance do not have to be
contradictory: the SUSI is also suitable for exploring cross-country flights.
But the wings real strong point is when winding it up in a tight thermal -
thanks to its low aspect ratio and its low useable speed, the SUSI is a master
climber. With a little practise, the SUSI can leave a high performance wing
behind.
Target
group
The
SUSI is a wing which offers maximum simplicity and therefore is generally
suitable for all pilots. But we would like to emphasise that high passive safety
cannot replace the need for sensible handling and active flying skills.
Technical
data
|
|
|
XXS
|
XS
|
S
|
M
|
L
|
|
Number
of cells
|
-
|
29
|
29
|
29
|
29
|
29
|
|
Projected
span
|
m
|
7,61
|
7,99
|
8,33
|
8,67
|
9
|
|
Projected
area
|
m²
|
20,22
|
22,28
|
24,25
|
26,25
|
28,27
|
|
Projected
aspect ratio
|
-
|
2,86
|
2,86
|
2,86
|
2,86
|
2,86
|
|
Flat
span
|
m
|
9,67
|
10,15
|
10,59
|
11,02
|
11,43
|
|
Flat
area
|
m²
|
23,65
|
26,06
|
28,36
|
30,7
|
33,07
|
|
Flat
aspect ratio
|
-
|
3,95
|
3,95
|
3,95
|
3,95
|
3,95
|
|
Line
diameter
|
mm
|
1
/ 1,4 / 2,1
|
|
Line
length
|
m
|
5,88
|
6,17
|
6,44
|
6,69
|
6,95
|
|
Total
line length
|
m
|
232
|
243
|
254
|
264
|
274
|
|
Max.
chord
|
m
|
2,98
|
3,14
|
3,27
|
3,4
|
3,53
|
|
Min.
chord
|
m
|
0,97
|
1,02
|
1,06
|
1,11
|
1,15
|
|
Weight
|
kg
|
4,5
|
5
|
5,3
|
5,6
|
5,9
|
|
Recommended
take off weight
|
kg
|
60-85
|
70-100
|
80-110
|
90-120
|
100-130
|
|
Certification
(EN/LTF)
|
-
|
A
|
A
|
A
|
A
|
A
|
Materials
|
|
DOKDO
30 DMF WR Fabric
|
|
Top
surface:
|
DOKDO
30 DMF WR Fabric
|
|
Bottom
surface:
|
DOKDO
30 DMF WR Fabric
|
|
Profile
ribs:
|
DOKDO
30 DMF Rib Fabric
|
|
Main
lines:
|
Cousine
Technora 2.1, Aramid
|
|
Gallery
lines:
|
Cousine
85 (Dyneema)
|
|
Brake
lines:
|
Cousine
85 (Dyneema)
|
|
Risers
|
Güth
& Wolf, Gurtband, 20 mm
|
Colours:

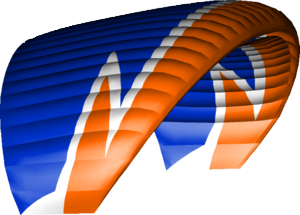

Blue Wave |

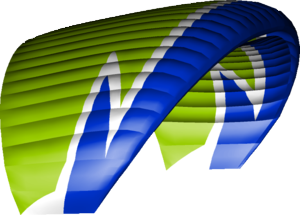

Green Wave |

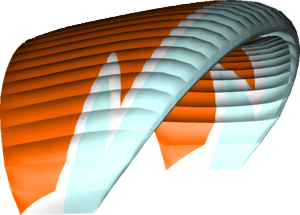

Orange Flux |

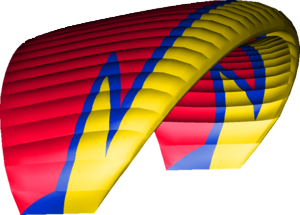

Red Banana |
Repair
kit.
Everyone
hopes it will never happen: a hole or tear in the paraglider. We have
included a minor damage repair kit in the right colour for such an
eventuality. |

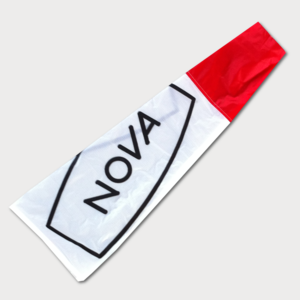

NOVA
windsock. So you know where the wind is coming from, we have
added a NOVA windsock. With a length of approximately 80cm it is large
enough for a take-off site |

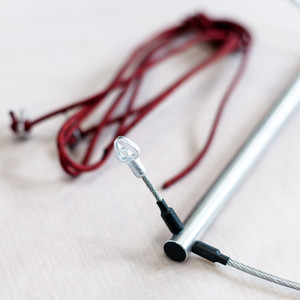

Speed
system.Your paraglider is fitted with a high quality speed system. Thanks to three holes in the cord attachment point, it will flexibly and simply adapt to your harness and leg length. |

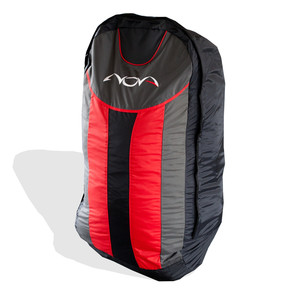

SUSI
Rucksack.Reduced
to essentials, simple to use: the SUSI rucksack is based on the same
principles as the SUSI paraglider. Plenty of space, easy to pack and
comfortable to carry.
|
Manual.We
have enclosed a very detailed manual which contains everything you need to
know about your paraglider. Please study it before flying your wing for
the first time. |
|
