The paramotor wing for recreational pilots (DULV)
SPEEDMAX – Powered Performance
High performance, very manageable extreme flight
behaviour and good all-round characteristics: with the SPEEDMAX, NOVA has
produced a paramotor wing which is easy to handle and comfortable in the air. A
high degree of passive safety was very important to us.
Balanced handling.
Good paramotor wings distinguish themselves by high roll stability
and simultaneously by a pleasantly agile handling. Combining these two
parameters which contradict each other into a complete package is a
big challenge when developing a paramotor wing. With the SPEEDMAX we
successfully achieved it.
High passive safety.
The SPEEDMAX offers a very high degree of passive safety. It provides
you with a safe feeling even when the air is a little restless. Like all
NOVA wings, the SPEEDMAX has been extensively tested in all possible collapse
scenarios.
A timeless classic.
A timeless classic. The SPEEDMAX is a perennial favourite in the NOVA
range. Because of its all-round good characteristics it remains a popular model.
SPEEDMAX pilots value the wing's sophisticated handling, combined with its high
passive safety.
Target group
The SPEEDMAX is a paramotor wing which
distinguishes itself by a high degree of simplicity. The target group are
recreational pilots who value a great deal of passive safety. Leisure pilots who
fly regularly in particular will enjoy the SPEEDMAX.

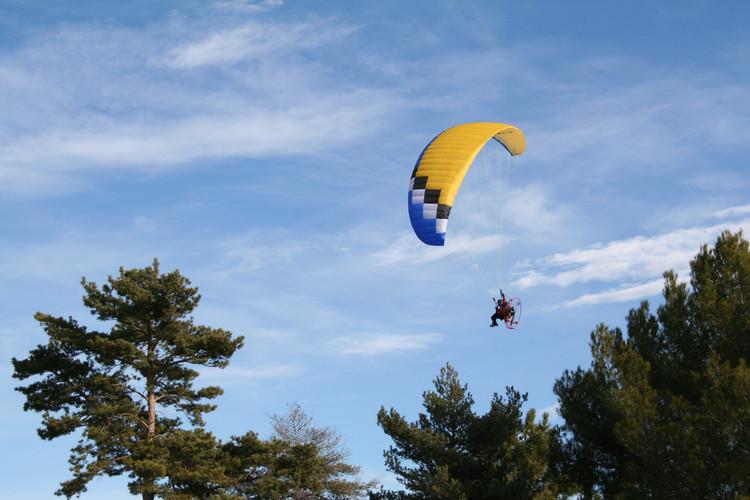

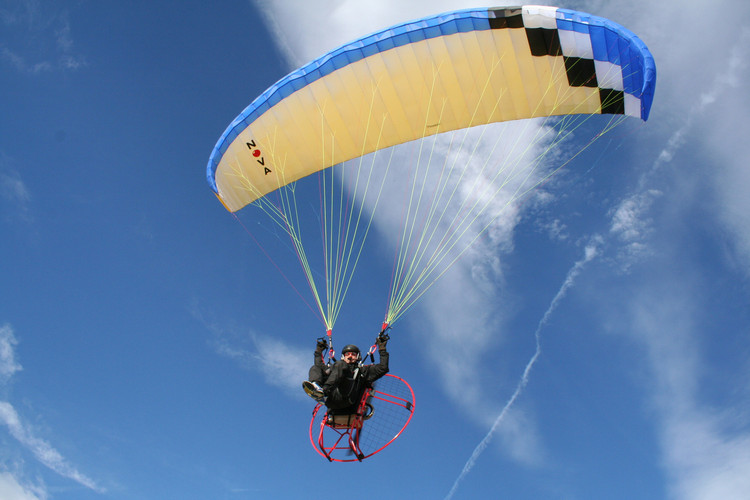

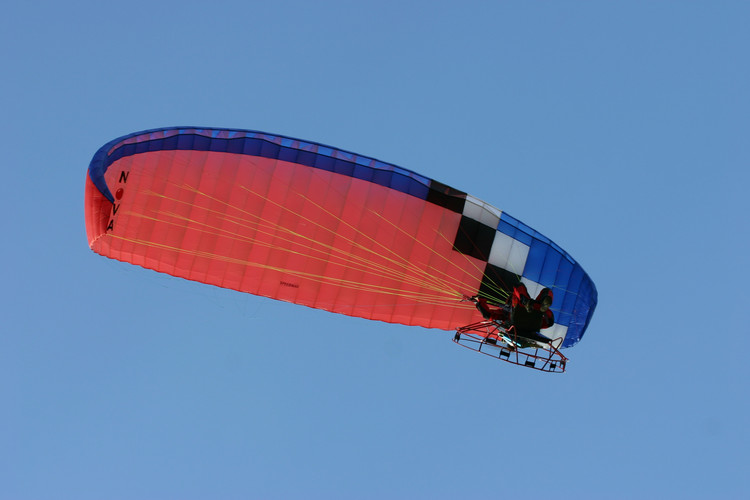

The SPEEDMAX experience (Please click at
the small pictures to enlarge)

Technical
data
|
|
|
19
|
21
|
23
|
|
Number
of cells
|
-
|
31
|
31
|
31
|
|
Projected
span
|
m
|
8,33
|
8,71
|
9,16
|
|
Projected
area
|
m²
|
19,23
|
21,04
|
23,33
|
|
Projected
aspect ratio
|
-
|
3,61
|
3,61
|
3,6
|
|
Flat
span
|
m
|
10,76
|
11,26
|
11,87
|
|
Flat
area
|
m²
|
22,6
|
24,73
|
27,52
|
|
Flat
aspect ratio
|
-
|
5,12
|
5,12
|
5,12
|
|
Line
diameter
|
mm
|
1,1
/ 1,8 / 2,2
|
|
Line
length
|
m
|
6,7
|
7
|
7,2
|
|
Total
line length
|
m
|
323
|
338
|
352
|
|
Max.
chord
|
m
|
2,61
|
2,73
|
2,88
|
|
Min.
chord
|
m
|
0,55
|
0,58
|
0,61
|
|
Weight
|
kg
|
5,3
|
5,7
|
6,1
|
|
Recommended
take off weight
|
kg
|
70-150
|
80-160
|
85-170
|
|
Recommended
take off weight (motor)
|
kg
|
70-150
|
80-160
|
85-170
|
|
Certification
|
|
DULV
|
DULV
|
DULV
|
Materials
|
|
Gelvenor
LCN0066 OL KS 52 g/m²
|
|
Top
surface:
|
Gelvenor
LCN0066 OL KS 52 g/m²
|
|
Bottom
surface:
|
NCV
D0911 40 g/m²
|
|
Profile
ribs (with line suspension point):
|
NCV
9092 E29A 48 g/m²
|
|
Profile
ribs (without line suspension point):
|
NCV
2420 X15A Trilam 165 g/m²
|
|
Main
lines:
|
Liros
TSL 280 (Armaid); Liros TSL 380 (Armaid)
|
|
Gallery
lines:
|
Liros
PPSL 120 (Dyneema)
|
|
Brake
lines:
|
Edelrid
7860-360 (Dyneema); Liros DSL 70 (Dyneema)
|
|
Risers:
|
Güth
& Wolf Gurtband 25 mm
|

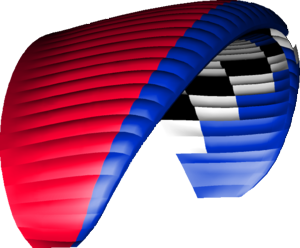

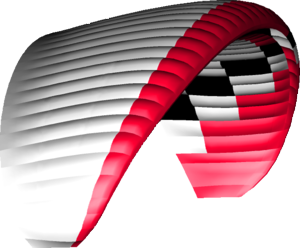

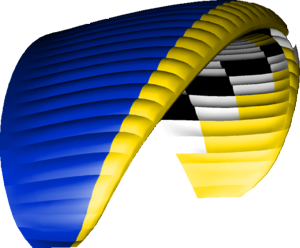

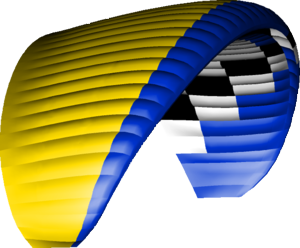

Colours
Scope
of delivery
NOVA
Rucksack.NOVA
Rucksack.The wing and harness will determine the size of the
rucksack. We are offering our high quality and comfortable to carry models
in size S (110 litres), M (130 litres) and L (150 litres
|
Repair
kit.Everyone hopes it will never happen: a hole or tear in
the paraglider. We have included a minor damage repair kit in the right
colour for such an eventuality.
|
NOVA
windsock. So you know where the wind is coming from, we have
added a NOVA windsock. With a length of approximately 80cm it is large
enough for a take-off site |
|
Downloads
19
